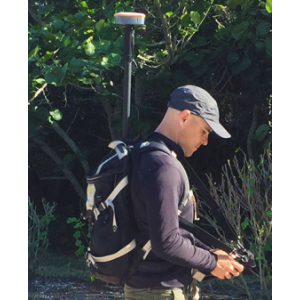

GPS Juniper Systems Geode GPS

RECEIVER

• Receiver type: GNSS single frequency with carrier tracking
• Signals received: GPS, SBAS,GLONASS (optional)
• Channels: 372
• SBAS tracking: 3-channel parallel tracking
• Update rate: 1 Hz standard, 2–10 Hz (optional)

ACCURACY

• SBAS (WAAS): <30 cm horizontal RMS (<60 cm 2DRMS)*
• Cold start: <60 sec typical(no almanac)
• Reacquisition: <1 sec

*GNSS accuracy subject to observation conditions, multipath environment, number of satellites in view, satellite geometry, and ionospheric activity.

 COMMUNICATIONS

• Bluetooth® 4.0 (Serial Port Profile)
• Bluetooth range: Class 1 Long Range
• Ports: micro USB Client 2.0; serial RS232C DB-9 (optional)
• Serial baud rates: 4800–115200

RECEIVER PROTOCOLS

• Data I/O protocol: NMEA 0183, raw binary (proprietary), RTCM2
• Other: 1PPS timing output, Speed Pulse, event marker input (optional)

POWER

• Input voltage: 5VDC @ 2A USB
• Power consumption: 1.7–2 W nominal
• Overtime Technology™ battery: 3.65V 5300 mAh Li-ion (~10 hours)
• Charging time: ~4 hours

ANTENNA

• Internal precision multi-GNSS with integrated ground plane
• External antenna port: MCX type, 50 ohm 15VDC @ 20 mA maximum

JUNIPER RUGGED™

• 2 year warranty
• Operating temperature: -20 C to +60 C
• Storage temperature: -30 C to +60 C
• Enclosure rating: IP68
• Dimensions: 4.4 x 4.4 x 1.7 inch (111 x 111 x 43 mm)
• Weight: 0.8 lb (360 g)
• Mount: ¼ x 20 camera stud and #6-32 AMPS Adapter (diagonal)

SOFTWARE

• GeodeConnect™: provides configuration, communications setup, and receiver settings
• Available for:
  • Windows Embedded Handheld 6.5
  • Android 4.x and above
  • Windows PC (8.1/10)

INCLUDED ACCESSORIES

• 5VDC USB Universal Charger
• USB Data/Charging Cable (USB-A to Micro-B)
• 5/8 x 11 Pole Mount Adapter
